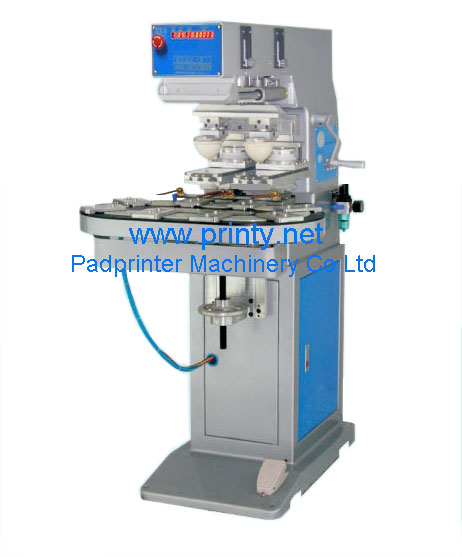

Rotary pad printer,Conveyor 2 color pad printing machine,Automatic 2 Colour Conveyor Ink Cup Pad Printer,Pad printing machine equipment professional manufacturers
|
| PM-280CC/10 |
| |
| |
Features: |
| |
- Professionally Manufacture Wholesale Supply Rotary pad printer, Conveyor 2 color pad printing machine, Automatic 2 Colour Conveyor Ink Cup Pad Printer,Automatic rotary table pad printing machines equipments.
- Advanced computerized system control
- Single chip microprocessor technology is being used
- Pneumatically driven
- Infrared photo sensor and hydraulic absorber are adopted
- Built-in LED digital counter
- Emergency stop system to ensure the safety of operator
- Light-weight, strong aluminum cast machine frame
- Ink trays, work table and pads are independently adjustable for easy color registration
- Speed, pad and printing stroke are easily adjustable for different printing requirements
- Ink tray, doctor blade, nylon ink pusher and pads are easily installed and dismounted for quick cleaning
|
| |
Main Specifications: |
| |
| Plate size(mm) |
100x250 |
| Max pad printing diameter(mm) |
Ø80 |
| Max pad printing length(mm) |
100 |
| Max pad head downward travel(mm) |
50 |
| Max pad head forward travel(mm) |
200 |
| Rotary table X-axis travel(mm) |
40 |
| Rotary table Y-axis travel(mm) |
65 |
| Rotary table Z-axis travel(mm) |
280 |
| Rotary table offset angle(°) |
|
| Pad adjustment X-axis(mm) |
45 |
| Pad adjustment Y-axis(mm) |
40 |
| Shuttle stroke(mm) |
|
| Conveyor pitch of index(mm) |
150 |
| No of jig fixture(pc) |
8 |
| Distance between work pieces(mm) |
150 |
| Max work piece height(mm) |
280 |
| Pad printing pressure(MPa) |
11.8 / 30.1 |
| Max pad head forward pressure(MPa) |
4.8 / 7.5 |
| Shuttle pressure(MPa) |
|
| Conveyor pressure (MPa) |
7.5 / 7.5 |
| Max speed(pcs/min) |
20 |
| Air pressure(MPa/cm2) |
0.45-0.60 |
| Air consumption(L/min) |
10 / 13 |
| Power supply |
110/220V 50/60Hz |
| Power consumption(W) |
620 |
| Machine dimension(mm) |
1170x700x1460 |
| Packing dimension(mm) |
1350x880x1700 |
| Net weight(kg) |
220 |
| Gross weight(kg) |
315 |
|
| |
|
|
