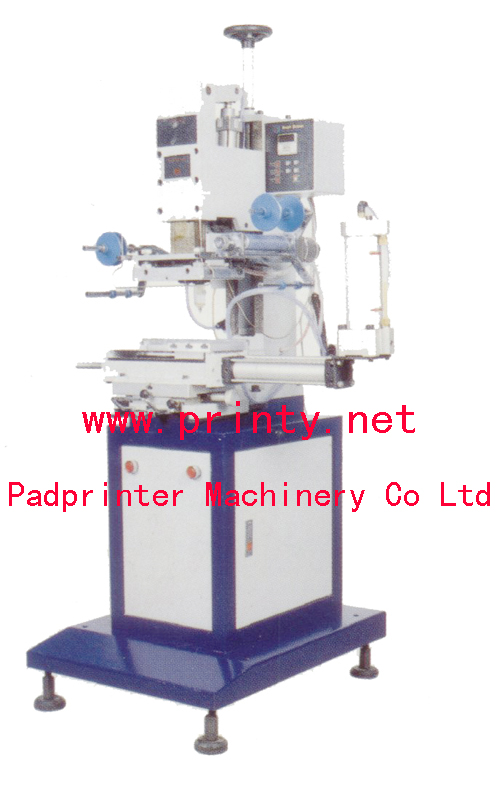

PM-H195M
Automatic Flat And Cylindrical Hot Stamping Machine

  Features:

  1. Capable of adjusting the stamping pressure, temperature and the speed.
  2. Worktable capable of slight adjustment on rear-and-front, left- and-right movement and rotation.
  3. Automatic foil feeding and rolling with adjustable function.
  4. High precision sensor available for foil feeding, ensuring good registration.
  Main Specifications:

  1. Size of stamping plate: 150 X 200 mm
  2. Max. substrate height: 140mm
  3. Max. stamping diameter: For whole circle: 60mm; For radian length: 160mm
  4. Max. stamping speed: 1100 pcs/hr
  5. Air consumption: =< 120 liter/min
  6. Worktable size: 128 X 128 mm
  7. Dimensions: 710 X 850 X 1600 mm
  8. Machine weight 150kg.
