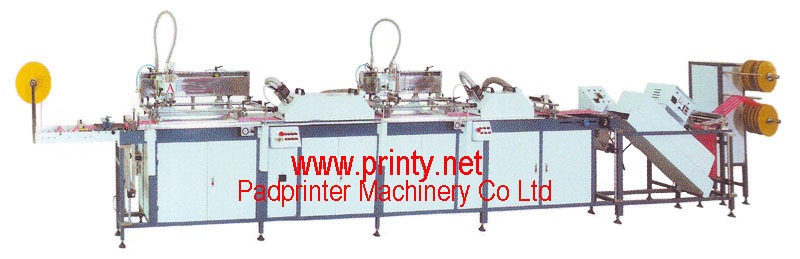

Ribbon screen printer,fully automatic 2 color ribbon screen printing machine equipment

1. Manufacture and supply good quality ribbon screen printer machine, fully automatic 1~2~3~4 color ribbon screen printing machine equipment, roll to roll 1 2 3 4 colour ribbon screen printer.
2. The ribbon screen printer machine, fully automatic 1~2~3~4 color ribbon screen printing machine equipment, roll to roll 1 2 3 4 colour ribbon screen printer is suitable for printing on all kinds of textile ribbons like cotton webbing, silk or satin ribbons, shoelaces, straps, lanyards ...etc.
3. It is also suitable for printing on plastic films in rolls.
4. It can print simultaneously up to 15 ribbons in 2 colors, which largely increase your printing capacity.
5. Printing quality is still high on rough surface or deep color fabrics.
6. The printed ribbons look fresh and bright even it is frequently washed.
7. Programmable PLC computer system is built-in the machine so that you can change your printing programs easily.
8. Applies the German and Japanese pneumatic control elements for quiet and accurate printing.
9. User friendly designed touch screen monitor are installed.
10. Accuracy of color registration is maintained within ±0.1mm.
11. Pneumatically driven which effectively reduces noise in operation.
12. Sensor is installed in the machine to detect the ribbons. If the ribbon roll is finished, the machine will stop automatically and alert you.
13. Glue system and vacuum function are available on the printing table to secure fixing of ribbons throughout the entire printing cycle or intermittently.
14. It is equipped with strong hot air dryers to ensure the colors printed are completely dried.

1. Max. printing area: 450 x 150mm
2. Max. frame size: 680 x 300mm
3. Max. printing speed: 20 cycles per min
4. Power: 380V, 3 phases,15KW
5. Air pressure: 0.5 - 0.65MPa/cm²
6. Air consumption: 3.1 L/min
7. Machine dimension: 855x72x173cm
8. Packing dimensions: 163x105x178cm;167x110x170cm;206x105x150cm;188x92x152cm;140x107x164cm
9. Net weight:1800kg
10. Gross weight: 2850kg

Video of Ribbon screen printer,fully automatic 2 color ribbon screen printing machine equipment
